Copper Bonded Earth Rod

KMP COPPER BONDED EARTH ROD manufactured from high tensile low carbon steel by molecularly bonding 99.9% pure electrolytic copper, there earth rods conform to BS 4360 grade 43A. Each rod is treated with Benzoyl triozole derivatives to prevent oxidation of copper bonding. The threads are formed by roll threading process which ensure strength and maintain the molecularly bonded copper along with full length of the threads. The rods can be deep driven manually or by using power hammer.

Coupler Heavy Duty

KMP COUPLERS are made of high grade material for higher strength with counted bore for protecting the rod threads from damage.

DC Tape Clip

KMP METALLIC DC CLIPS are used to secure the flat conductor to the building. It is recommended to use DC Clips at 1 mtr. distance. The tape fits into the clip and is secured by two countershunk screws. These clips can be fastened to the building by recommended csk woodscrew 1 1/2" x No 10 plugs.

Body - Gunmetal Screws - Naval Brass
BS EN 50164-1:2000 (5Nm)

Plate Type Test Clamp

KMP PLATE TYPE TEST CLAMPS are used as T or straight through joints of tapes. These test clamps can also used as disconnecting joint between the down conductors and the earthing system. The clamp is also suitable in heavy duty applications up to 26 x 12 tape connections.

Body - Gunmetal Fasteners - Naval Brass, Silicon Bronze, Phosphor Bronze, SS
BS EN 50164-1 : 2000 (15 Nm)

Air Terminal Base - Tape

KMP AIR TERMINAL BASE – TAPE used for fixing air rods onto the flat roof surfaces and to accommodate tape for the protection system. The threads are suitable for air rods.

Body - Gunmetal

Heavy Duty Case Cable Saddle

KMP HEAVY DUTY CAST CABLE SADDLE can be used in many application. These can be used as a support for 10mm dia. Air rod or as a heavy duty clip for round conductors. These can be used in conjunction with glazing bar holdfast and back plate holdfast stem.

Body - Gunmetal Screws - Naval Brass
BS EN 50164-1:2000 (5 Nm)

OD to Cable Clamp - Type 'G'

KMP OD TO CABLE CLAMPS are used for joining earth rods to copper cables.

Body - Gunmetal, Bolts - Al Bronze, Phosphor Bronze and SS
BS EN 50164-1:2000 (12 Nm)

Tee Clamp

KMP TEE CLAMPS are suitable for forming tee joints of circular conductors.

Body - Gunmetal Fasteners - Silicon Bronze, Phosphor Bronze, SS
BS EN 50164-1 : 2000 (12 Nm)

Oblong Test or Junction Clamp

KMP OBLONG TEST / JUNCTION CLAMPS are used for straight through tape joints and also used for disconnecting the earthing or lightning protection system for testing purpose. The tapes can be overlapped and secured by two bolts.

Body - Gunmetal Bolts - Silicon Bronze, Phosphor Bronze, SS
BS EN 50164-1:2000 (13 Nm)

Re-Bar Clamp

KMP RE-BAR CLAMPS are suitable for bonding circular conductors to reinforced bars, steam pipes, hand rails, etc.

Body - Gunmetal Bolts - Silicon Bronze, Phosphor Bronze, SS

Rod to Tape Clamp - Type 'A'

KMP ROD TO TAPE CLAMP - TYPE 'A' offers a variety of earth rod clamps suitable for different applications. Conductivity, mechanical strength and corrosion resistance are important considerations in clamp design to ensure - earthing system perfect for the life time of the system all Speedwell clamps are made of high strength copper alloys bodies and screws of aluminum bronze, phosphor bronze, and stainless steel etc... (commercial brass is never used)

Used for joining earth rods to copper tapes, these clamps are available to suit different sizes of earth rods and copper tapes.

Body - Gunmetal, Bolts - Al Bronze, Phosphor Bronze and SS
BS EN 50164-1:2000 (15 Nm)

Split Connector Clamp – Type L

KMP SPLIT CONNECTOR CLAMP used with threaded and unthreaded rods, suitable for connecting earth rod with cable lugs.

Body:- Gunmetal, Bolts – Aluminum Bronze, Phosphor Bronze and SS

Square Tape Clamp

KMP SQUARE TAPES are used for crossing over tapes or for T joints or for making straight through joints in a network or tapes. These clamps can be fastened to the building by recommended csk woodscrew 1 1/2" x No 10 plugs.

Body - Gunmetal, Screws - Naval Brass
BS EN 50164-1:2000 (5 Nm)

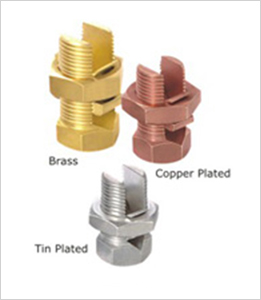

Split Bolt Connectors/Line Taps

KMP SPLIT BOLT CONNECTORS are used to couple of range of stranded or solid circular conductors and no specialized tool is required for installation.

Split bolt a very handy component used in various equipment like industrial, electrical and even electronic equipment. The multifaceted utility of the split bolt depends up on the high quality material used and the precision adopted in the manufacturing process. Split Bolts are widely used to firmly hold any tiny object in between the split to have a precision in its operation whether electrical or industrial.

We meet all the technical and quality control to deliver the best split bolts by using thorough processing and testing of the split bolts before it reaches the customer or the user. We use a very high quality of material to strengthen the life of the split bolts in all respects.

We manufacture custom made split bolts, brass split bolt connectors and line tap apart from our regular sized and commonly used. To cater the various needs of the customers, we turn their ideas in to finished split bolts with 100 percent precision and guarantee.

KMP is one of the reputed industries which can produce split bolt connectors as per the specification of the customers and market demand of the day.

Body: - Tin Plating, Copper Plating as well as Tin Platted Hand Tightened

Rod To Cable Clamp Type GUV

KMP ROD TO CABLE CLAMP TYPE GUV are suitable for Copper Alloy, Double Plate Clamps are suitable for connecting earth rod with stranded cables/round conductors.

Body – Gunmetal, Ubolt- Copper
BS EN 50164-1:2000 (12Nm)
